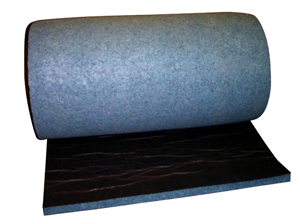

Quiet Liner™
Recycled Cotton Acoustical Liner
Quiet Liner is a thermally bonded HVAC insulation that offers superior acoustic and thermal performance. Made from natural fibers, Quiet Liner contains no fiberglass and does not itch or cause skin irritation. The fibers used to manufacture Quiet Liner offer excellent sound absorption properties. The air stream surface of Quiet Liner is overlaid with a durable, fire-resistant black facing providing additional strength to the product. Both the insulation and facing are treated with an EPA registered anti-microbial agent.
Quiet Liner is used mainly as an acoustical liner designed for HVAC sheet metal ducts to absorb unwanted noise from multiple sources. It will also reduce heat gan or loss. Quiet Liner contains no harmful irritants and is safe to handle and install
Features:- Excellent Noise Absorption
- Class A Fire Rated
- Reduces Heat Loss/Gain
- No Formaldehyde
- Resists Microbial Growth
- Low Air Resistance
- No Itch or Skin Irritation
Standard Sizes:
½″ × 48″ W × 100′ L (3.0 Density)
1″ × 48″ W × 50′ L (1.5 Density)
2″ × 48″ W × 25′ L (1.5 Density)
Custom Sizes:
½″ × 35″-60″ W × 100′ L (3.0 Density)
1″ × 35″-60″ W × 50′ L (1.5 Density)
2″ × 35″-60″ W × 25′ L (1.5 Density)
Thickness: ½″, 1″, 1½″, 2″
Performance:
½″ – NRC = 0.40
1″ – NRC = 0.75
1½″ – NRC = 0.85
2″ – NRC = 1.15
Flammability:
Flame Spread Max: 25
Smoke Developed Max: 50
Class A/Class 1
Thermal Performance:
½″ – R 2.0
1″ – R 4.2
1½″ – R 4.2
2″ – R 8.0
