Echo Eliminator™ Impaling Clip/Pressure Pin Installation

Cleaning & Maintenance:

Accumulation of dust and dirt are best removed with a soft brush attachment on a vacuum cleaner. Use vacuum attachments with at least 1″ soft brushes to avoid damage to panel. Do not use water or cleaning solutions.

Cutting & Trimming:

For field cutting panels of any size or thickness, we recommend that the product be cut on a table saw with a standard 8″ round blade with no teeth (similar to a meat carving blade).

1″ material can be cut straight through with one pass. 2″ or thicker material should be cut halfway through the thickness of the material, then flipped over and cut again along the same line. This cutting method will deliver the same square edge detail that the product was originally delivered with.

Overhead Ceiling Installation – Impaling Clip/Pressure Pin:

  1. Determine panel location.

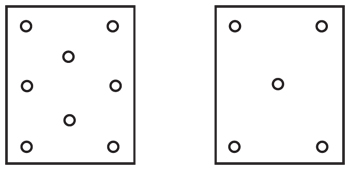

  2. Determine clip location. Two options (for 2×4 panel):

  3. Echo Eliminator Adhesive Overhead Ceiling Installation

  4. Fasten clip to ceiling using construction adhesive and 1¼″ drywall screw.

  5. Impale panel onto pins.

  6. Attach lock washer.

  7. Cut off excess pin length.
