Super W Pad – Standard, Neoprene, Bridge
Noise & Vibration Control Pad
Reduces Noise, High Frequency Vibration, and Impact Noise From:- Single Package Air Conditioners and Heat Pumps
- Fan Coil Units
- Condensing Units
- Electronic Air Cleaners
- Beverage Coolers
- Pumps
- Air Compressors
The Super W Pad is one of the thickest, most versatile and efficient vibration pads available. It is designed to reduce noise, high frequency vibration and impact noise from air conditioners, refrigeration equipment, pumps, and much more. The higher deflection waffle design, with its suction cup action, eliminates the need for bolting down.
The Super W Pad is molded in 3 elastomers: Standard Natural Rubber for maximum silence and vibration isolation; Neoprene for longer life and moderate oil resistance; and Bridge-Bearing Neoprene for maximum life, excellent oil resistance, and resiliency approaching natural rubber.
The Super W Pad should be used in 2″×2″ squares. Select the minimum number of squares required and configure the pad to the most convenient shape. The use of additional squares results in more conservative loading.
Example: Load is 700 lbs., capacity is 120 lbs./square. 700÷120 = 5.83 squares. Use 6 squares configured as 2 squares by 3 squares (4″×6″) or 1 square by 6 squares (2″×12″).
Multiple pads may be stacked with 16 gauge shims between layers for increased deflection. For example, 3 layers offers 3 times the deflection.

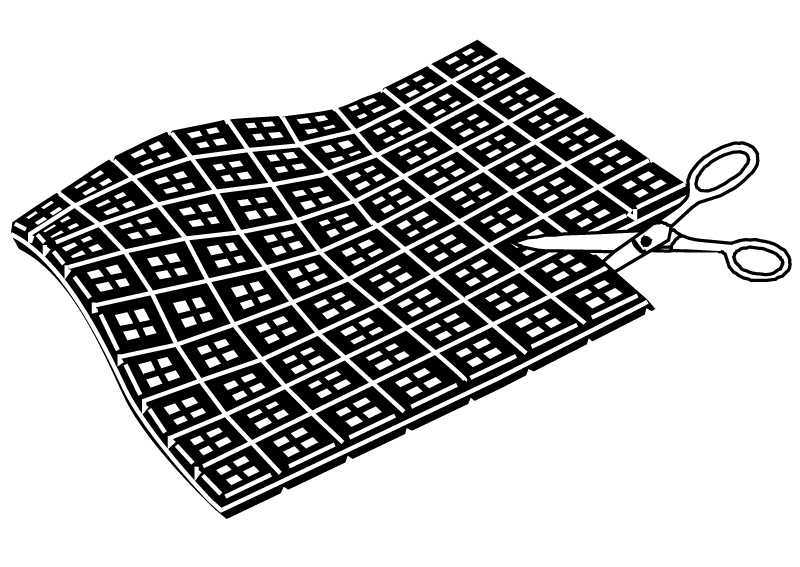

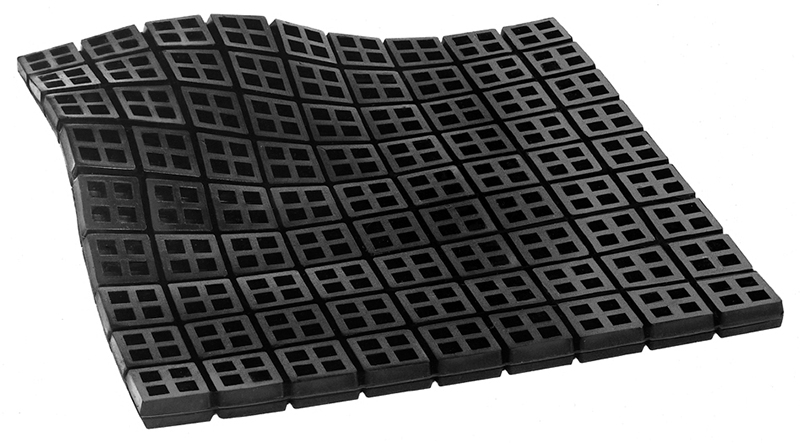

Dimensions: Standard 18″×18″ sheets consist of 81 2″ squares, each supporting 120 pounds. The squares are separated by a thin web that is easily cut to provide evenly dimensioned pads such as 2″×2″, 2″×4″, 4″×4″, 6″×8″, etc.Thickness: ¾″
Performance: Standard Durometer = 40
Load per 2″×2″ Square = 120 lbs.
Rated Deflection (in) = 0.10
